Details
CASUAL COMMUTER

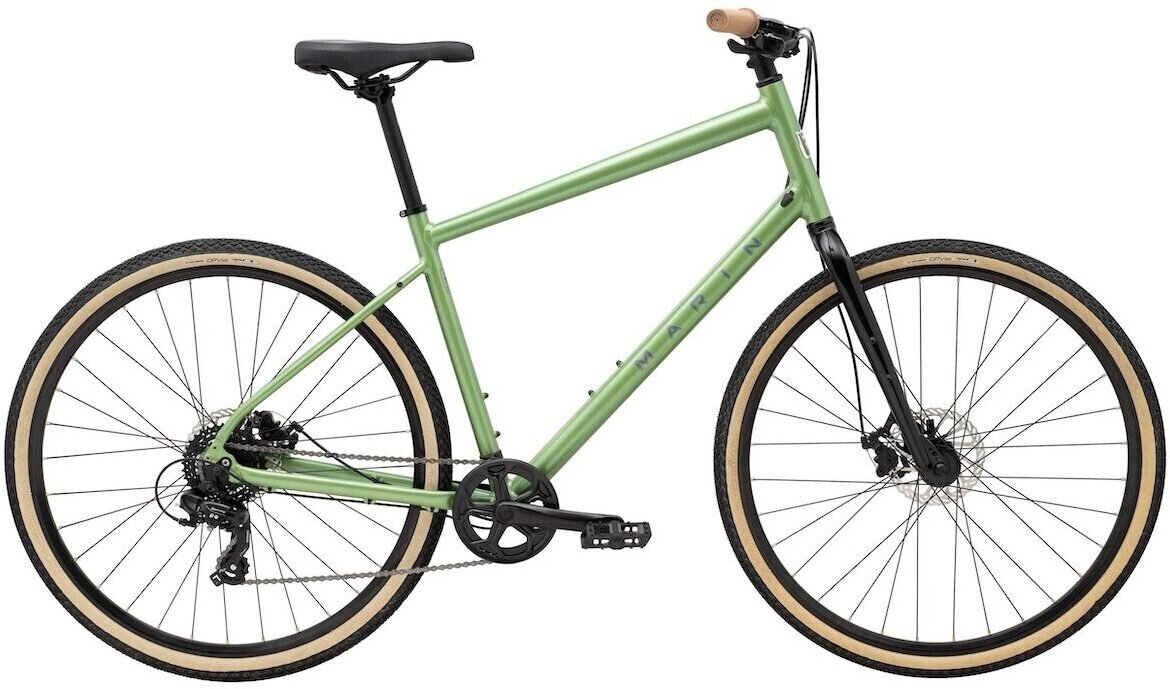

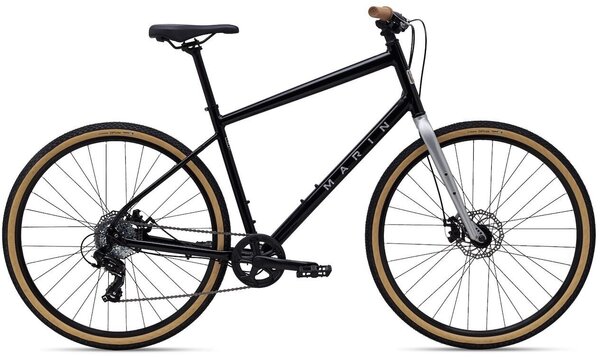

The Kentfield 1 is our most-affordable Kentfield. Designed to be affordable, comfortable and reliable it’ll go the distance, every day of the week.
Our Series 1 aluminum frame is lightweight and responsive, and comes decked out with plenty of rack and fender mounts to suit your setup. There’s a Shimano 7-speed drivetrain, Vee Tire tires, Clark’s mechanical disc brakes and plenty of reliable Marin components.
The Kentfield 1 is also available in a step-through version.
SERIES 1 ALUMINUM FRAME
- The Kentfield features a Series 1 6061 aluminum frame with disc brake mounts and rack and fender eyelets and fast rolling, multi-surface capable 700c wheels with either a standard horizontal top tube or a step-thru frame design.
CRMO BMX INSPIRED FORK
- The stylish CrMo BMX style fork has straight blades, disc mounts, and BMX inspired dropouts.
HYBRID GEOMETRY
- The Kentfield features upright seated hybrid geometry that mixes the upright position of a mountain bike with the efficiency of a pavement bike.
WIDE-RANGE GEARING
- Wide-range, 1x gearing is simple to use and offers as large if not larger of a gear range than multi-chainring bikes of the past.
SIZE | Small | Medium | Large | X-Large |
---|---|---|---|---|
A - Stack (mm) | 633.6 | 648.4 | 666.5 | 685.3 |
B - Reach (mm) | 380 | 400 | 415 | 430 |
C - Headtube Angle (°) | 70° | 70° | 70° | 70° |
D - Headtube Length (mm) | 190 | 205 | 225 | 245 |
E - Seattube Angle (°) | 73.5° | 73.5° | 73.5° | 73.5° |
F - Seattube Length (mm) | 422 | 462 | 495 | 528 |
G - Toptube Effective (mm) | 567.7 | 591.9 | 612.4 | 633 |
H - BB Height (mm) | 294.5 | 294.5 | 294.5 | 294.5 |
I - BB Drop (mm) | 70 | 70 | 70 | 70 |
J - Chainstay (mm) | 450 | 450 | 450 | 450 |
K - Wheelbase (mm) | 1082.9 | 1108 | 1130 | 1151.7 |
L - Standover Height (mm) | 718.86 | 754.41 | 784.94 | 815.14 |
M - Fork Offset (mm) | 50 | 50 | 50 | 50 |
Seatpost Diameter (mm) | 27.2 | 27.2 | 27.2 | 27.2 |
Handlebar Width (mm) | 680 | 740 | 740 | 740 |
Stem Length (mm) | 45 | 45 | 45 | 45 |
Crank Length (mm) | 170 | 170 | 175 | 175 |
SIZE | Small | Medium | Large | X-Large |
---|---|---|---|---|
Rider Height (In) | 5'2" - 5'6" | 5'6" - 5'10" | 5'10" - 6'2" | 6'1" - 6'4" |
Specs
Frame | Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts |
---|---|
Fork | Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets |
Wheels | Marin Aluminum Double Wall, Disc Specific |
Hubs | Forged Aluminum Alloy, 32H |
Spokes | 14g Stainless Steel |
Tires | Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready |
Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
Crankset | Forged Alloy Crank, Steel 38T Chainring, Ring Guard |
Shifters | Shimano Altus 7-Speed RapidFire |
Rear Derailleur | Shimano Tourney 7-Speed |
Cassette/Freewheel | SunRace 7-Speed, 11-34T |
Chain | KMC Z8 |
Brakes | Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
Brake Levers | Aluminum Lever |
Handlebars | Marin Alloy, 30mm Rise, 12° Backsweep |
Tape/Grips | Marin Adventure |
Stem | Marin Aluminum, 31.8mm Clamp |
Headset | FSA 888 Threadless |
Seatpost | Marin Alloy, 27.2mm |
Saddle | Marin Adventure Plush |
Pedals | Marin Oso OE Flat |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Green / Small | 843346125507 | 737573001 | 210000002759 |
